Facade Access & BMU Systems SK-TAP-101 Suspended Facade Cleaning Platform

SEKLIFT engineers facade access systems for controlled high-rise cleaning, inspection and maintenance. Our BMU systems are coordinated around the building geometry, roof interface, access zones and operating requirements. The SK-TAP-101 facade cleaning system uses a 500 kg suspended platform, twin electric drives, galvanized wire ropes and layered safeguards for dependable building maintenance access.

01
500 kg rated capacity Specified lifting capacity for the suspended platform
02
Twin electric drive 2 × 1.1 kW motor configuration
03
Layered safeguards Emergency, rope, tilt, limit and overload controls

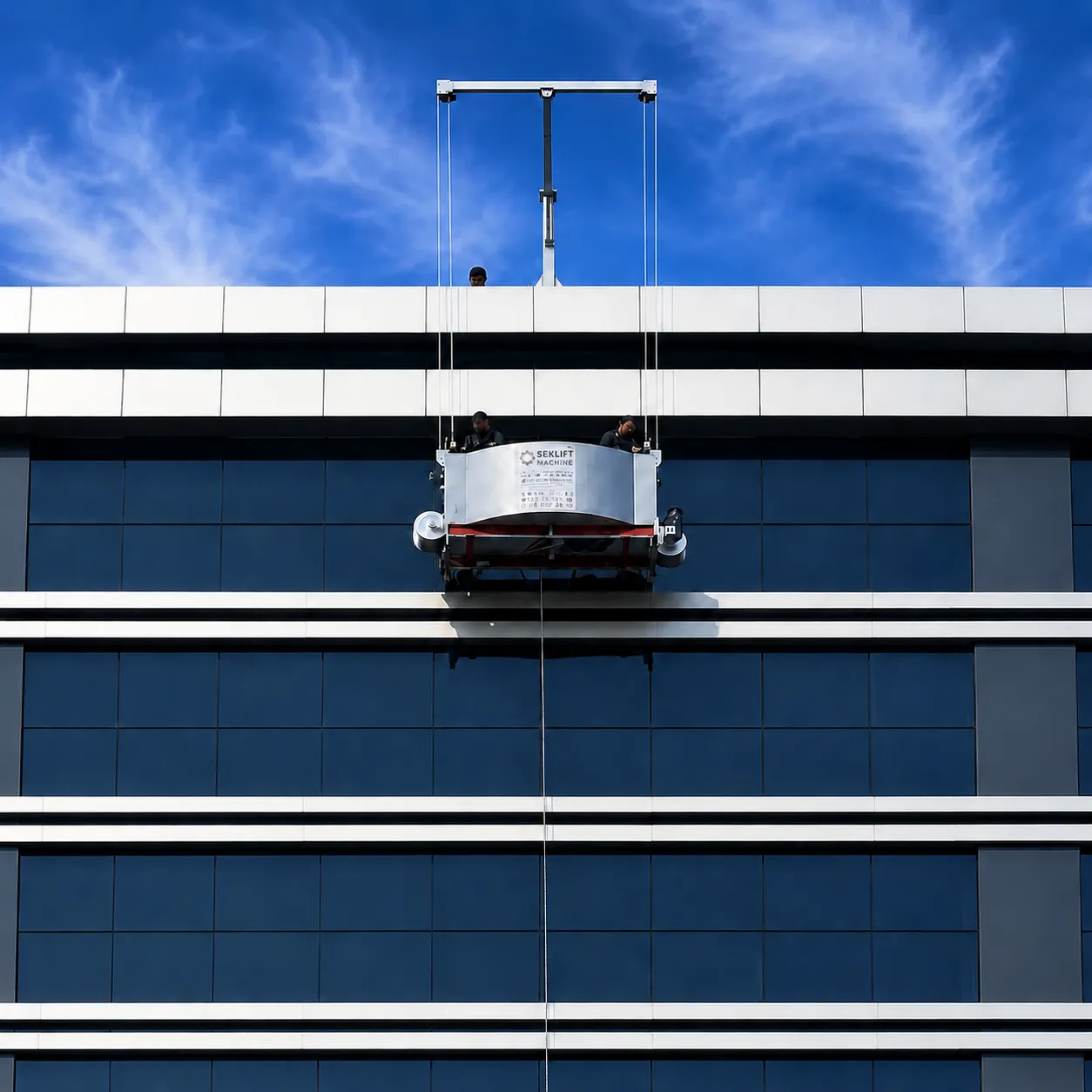

SEKLIFT SK-TAP-101 suspended facade access cleaning platform operating on a glazed building elevation
FAÇADE ACCESS / PROJECT-DEFINED SYSTEM Controlled vertical access for building cleaning and maintenance.
Dedicated model SK-TAP-101 · 500 kg
Typical façade-access duties The system is coordinated around the elevation, roof interface and maintenance strategy.
  • 01Window Cleaning
  • 02Façade Inspection
  • 03Joint & Sealant Work
  • 04Cladding Maintenance
  • 05High-Rise Building Care
BUILDING MAINTENANCE ACCESS / 01 DEDICATED MODEL

Facade Access Systems. One Dedicated Platform + Project-Defined Access.

BMU Systems & Building Maintenance Unit Planning

SK-TAP-101 combines a 2 m suspended façade-cleaning platform, twin electric drives, galvanized wire ropes, dual rope winding and independent operating safeguards in one coordinated maintenance-access system.

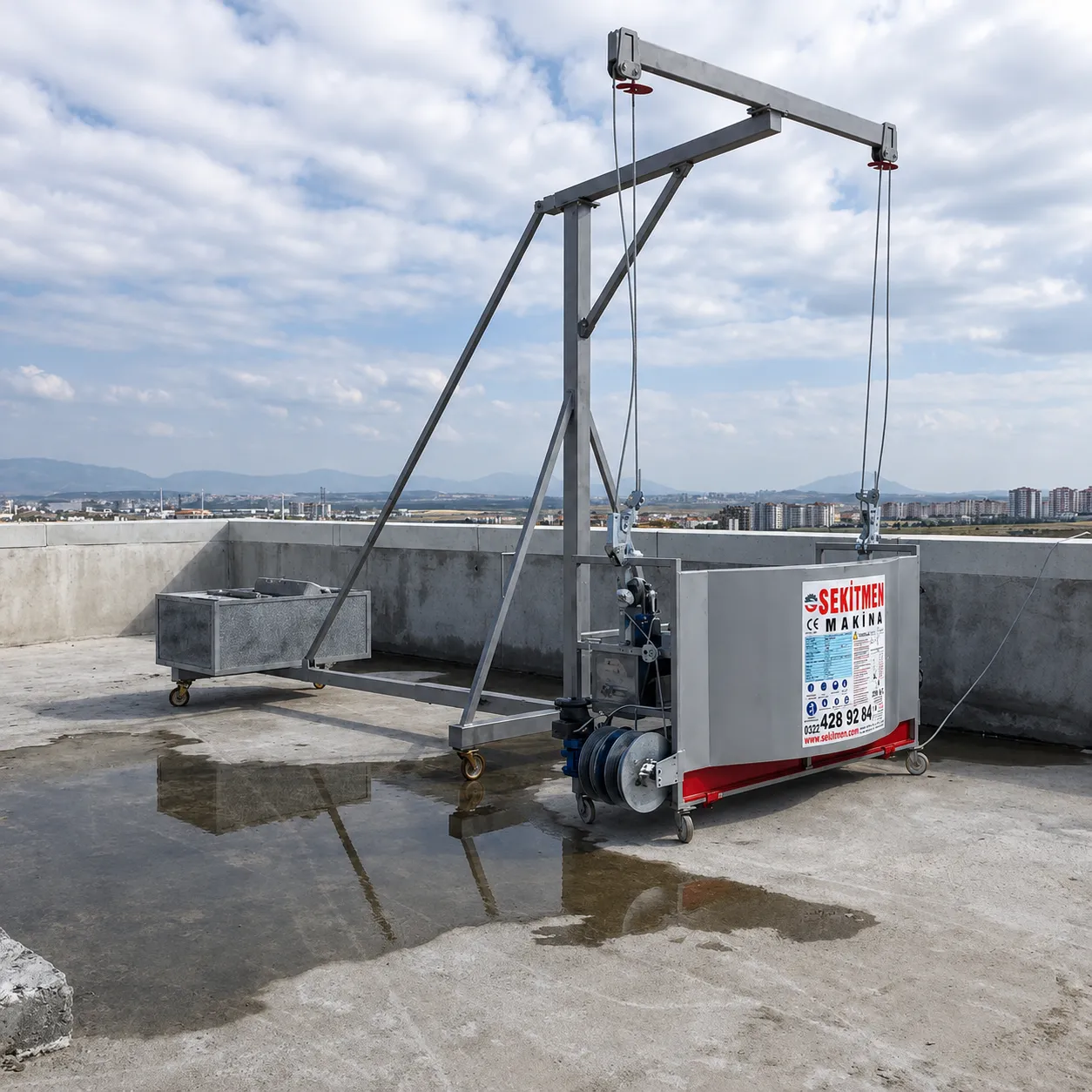

Roof interface, suspension arrangement, anchorage, outreach, parking and rescue planning must be engineered for the actual building.
DEDICATED MODEL / 01

SUSPENDED FAÇADE CLEANING & MAINTENANCE PLATFORM

SEKLIFT SK-TAP-101 Facade Cleaning System

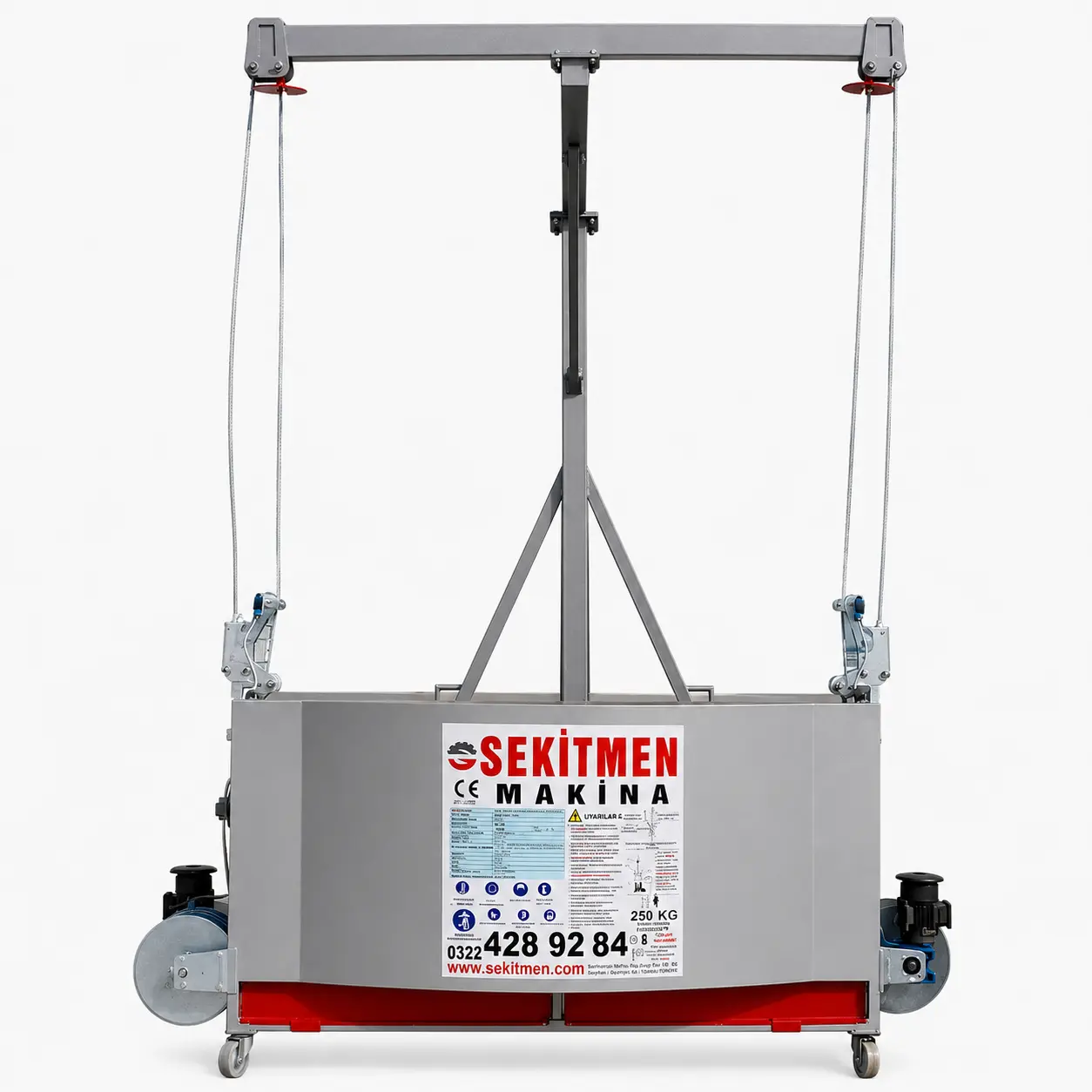

A 500 kg façade-cleaning platform with a 2 m working deck, twin 1.1 kW motors and two rope-winding mechanisms. Its 0.15 m/s climbing speed, 8 mm galvanized wire ropes and coordinated emergency systems support controlled access for high-rise building maintenance.

Rated capacity
500 kg
Motor power
2 × 1.1 kW
Vertical speed
0.15 m/s
Platform length
2 m
OPERATING ARCHITECTURE / VERTICAL ACCESS + 06 SAFETY SYSTEMS

Safety Architecture. Protected Throughout Travel.

SK-TAP-101 coordinates its powered 2 m platform with electromagnetic braking, secondary rope protection, inclination monitoring, travel limits, overload detection and a manual power-loss lowering procedure.

CRITICAL SAFETY CONTROL 03
01
Electromagnetic & Block-Stop Braking

An electromagnetic brake and two block-stop brakes provide the stated stopping and secondary rope-protection layer.

02
Emergency Stop & Manual Lowering

The red emergency control stops operation, while the manual system allows controlled lowering after a power failure.

03
Tilt, Travel & Overload Monitoring

A 14° tilt limit, upper and lower limit switches, and overload detection monitor the operating envelope.

04 / PLATFORM 2 m Working Deck

The dedicated platform dimension provides a compact working zone for façade cleaning and maintenance personnel.

05 / WIRE ROPE 8 mm Galvanized Ropes

The stated suspension specification uses 8 mm, 6×19 galvanized wire ropes.

06 / ROPE MANAGEMENT Two Winding Mechanisms

Two rope-winding units coordinate with the twin-drive platform configuration.

07 / ELECTRICAL SUPPLY 380 V Operation

The supplied electrical specification states a 380 V operating voltage.

08 / PROJECT ENGINEERING Access Geometry Defined by the Building

Roof layout, suspension position, façade recesses, working zones, parking and rescue access must be coordinated for the individual structure.

PROJECT INPUTS / BUILDING COORDINATION

Define the Maintenance Envelope Before Final Configuration.

The suspended platform is only one part of the final arrangement. A useful engineering review begins with the actual structure: roof plan, elevations, sections, parapet geometry, working height, façade recesses, obstacles, intended duties and the position where the equipment will be parked. These inputs establish the physical envelope that the suspension layout, support points and operating route must work within.

01 / ROOF INTERFACE

Coordinate Suspension Geometry with the Structure

Roof conditions determine where supporting equipment can be positioned and how the suspended platform reaches the required working zones. Parapets, setbacks, available structural space, anchorage conditions and support loads should therefore be reviewed together rather than treated as separate details. Parking position and the route used to prepare the equipment for operation also need to be considered during this stage.

02 / OPERATING ENVELOPE

Map Working Zones, Obstacles and Travel Requirements

Building elevations and section drawings help identify recesses, projections, changes in geometry and areas that require regular cleaning or inspection. The proposed arrangement should account for these conditions before the operating concept is finalized. This review also gives the project team a clearer basis for discussing working height, maintenance duties and how the platform is expected to approach each required zone.

03 / OPERATION & RESCUE

Plan Power, Parking and Emergency Procedures Together

The supplied equipment specification states 380 V operation together with braking, travel-limit, tilt, overload and manual-lowering provisions. Their project use still has to be coordinated with the building arrangement, normal operating procedure, parking location and rescue planning. Bringing these requirements into the same review helps avoid treating mechanical, electrical and operational interfaces as unrelated decisions.

01 Define Map the full maintenance envelope.

Identify roof constraints, façade zones, recesses, obstacles, parking position and rescue requirements.

02 Engineer Coordinate the access arrangement.

Review support loads, suspension geometry, 380 V supply and the interface between the building and access equipment.

03 Operate Control travel within the defined envelope.

Braking, rope protection, tilt, limit and overload systems form the supplied safety architecture.

FAÇADE-ACCESS ENGINEERING / NEXT STEP

Engineer SK-TAP-101 around the actual building.

Share the building elevations, roof plan, section drawings, parapet geometry, working height, maintenance zones, parking position and intended duties so SEKLIFT can review the façade-access concept.
