Heavy-Duty Rack-and-Pinion Construction Hoists Engineered in Türkiye for Personnel & Material Access

SEKLIFT designs and manufactures rack-and-pinion construction hoists for safe, efficient personnel and material transport on demanding construction sites. Our range of construction hoists includes the SM-GTP-101 construction hoist and SM-GTP-103 construction hoist, with each personnel and material hoist configured around project height, landing arrangement, rated duty and operating conditions.

Explore Hoist Systems Request a Technical Quote
01
Personnel transport Site access between temporary landings
02
Material transport Tools, components and construction loads
03
Project-specific Height, cage, mast and landing coordination

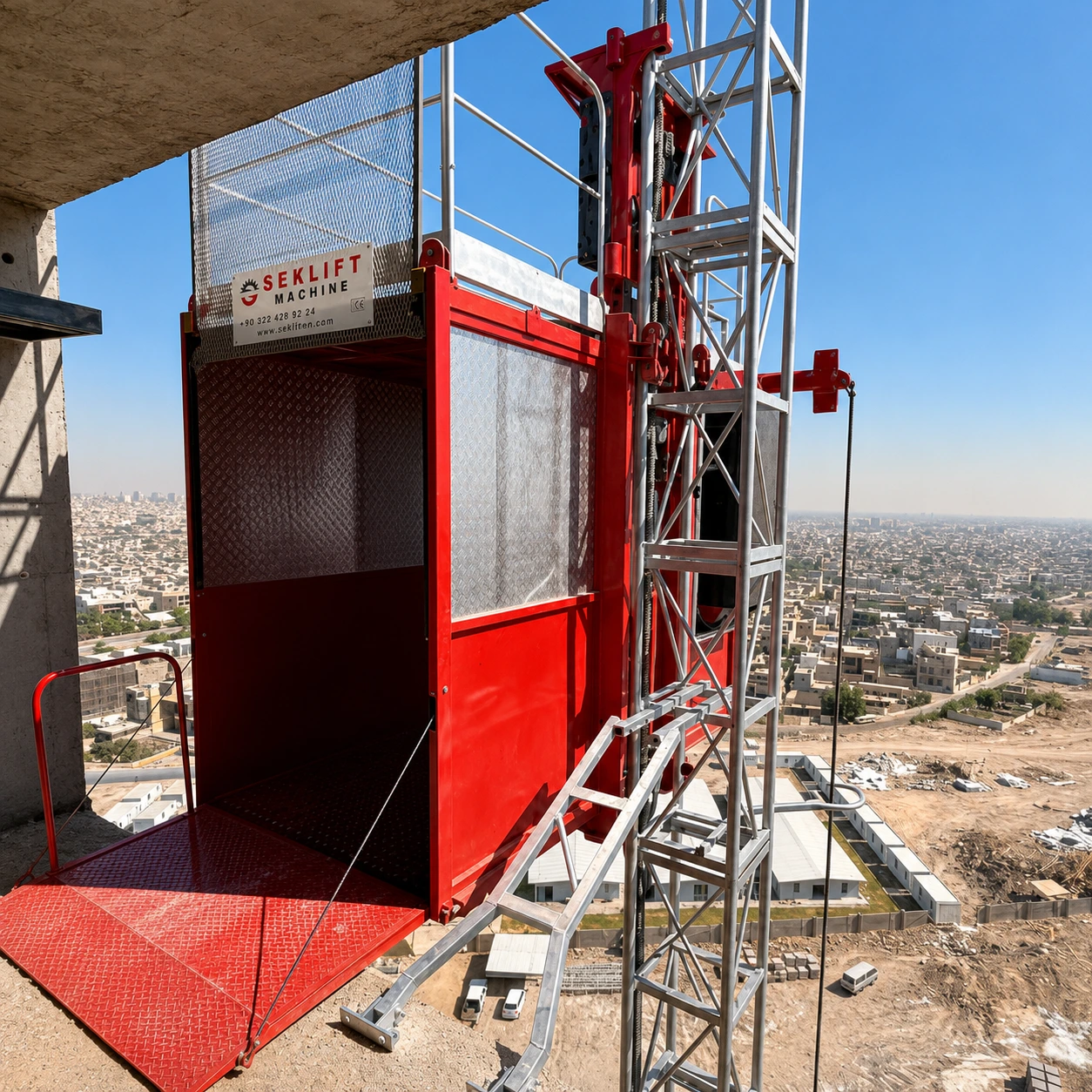

SEKLIFT rack-and-pinion construction hoist for personnel and material site transport
RACK-AND-PINION / SITE DUTY Vertical access configured around the building.
System profile Personnel · Materials · Combined Duty
Project configuration inputs The hoist system begins with the geometry and transport demands of the project.
  • 01Building Height
  • 02Landing Arrangement
  • 03Rated Duty
  • 04Structural Interface
  • 05Site Conditions
CONSTRUCTION HOIST RANGE / 02 MODELS

Select the Right Personnel and Material Hoist for the Project

The SEKLIFT construction-hoist range is organized around two clear duty classes: a compact one-ton system for constrained sites and a high-capacity platform for demanding personnel and material transport. Model codes remain unchanged while the new product names make each system easier to understand, specify, and search.

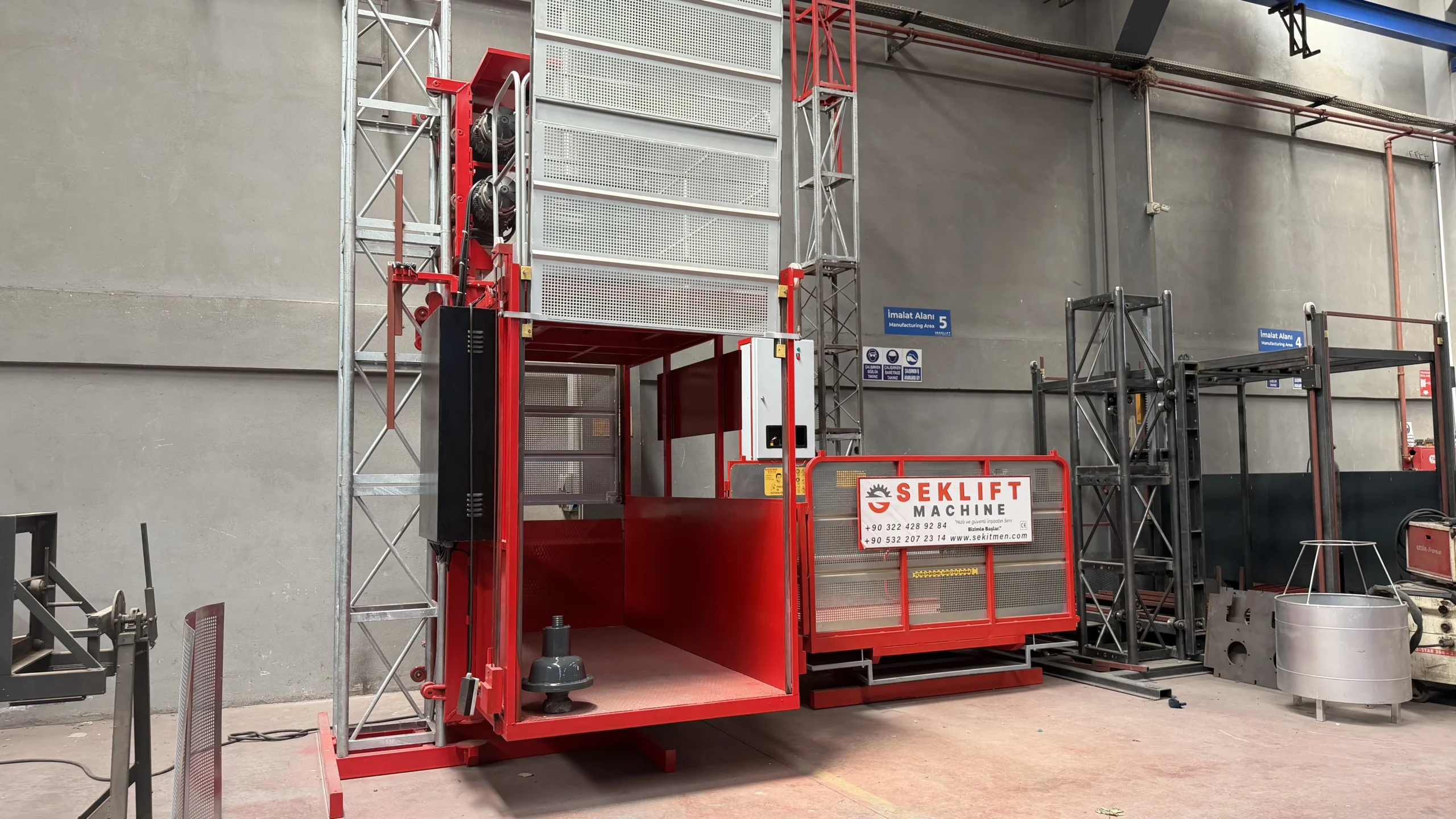

SEKLIFT SM-GTP-103 and SM-GTP-101 construction hoists displayed in the manufacturing facility High-capacity duty class SM-GTP-101 Personnel & material rack-and-pinion hoist Light-duty class SM-GTP-103 Personnel & material rack-and-pinion hoist
One product family Two project duty classes

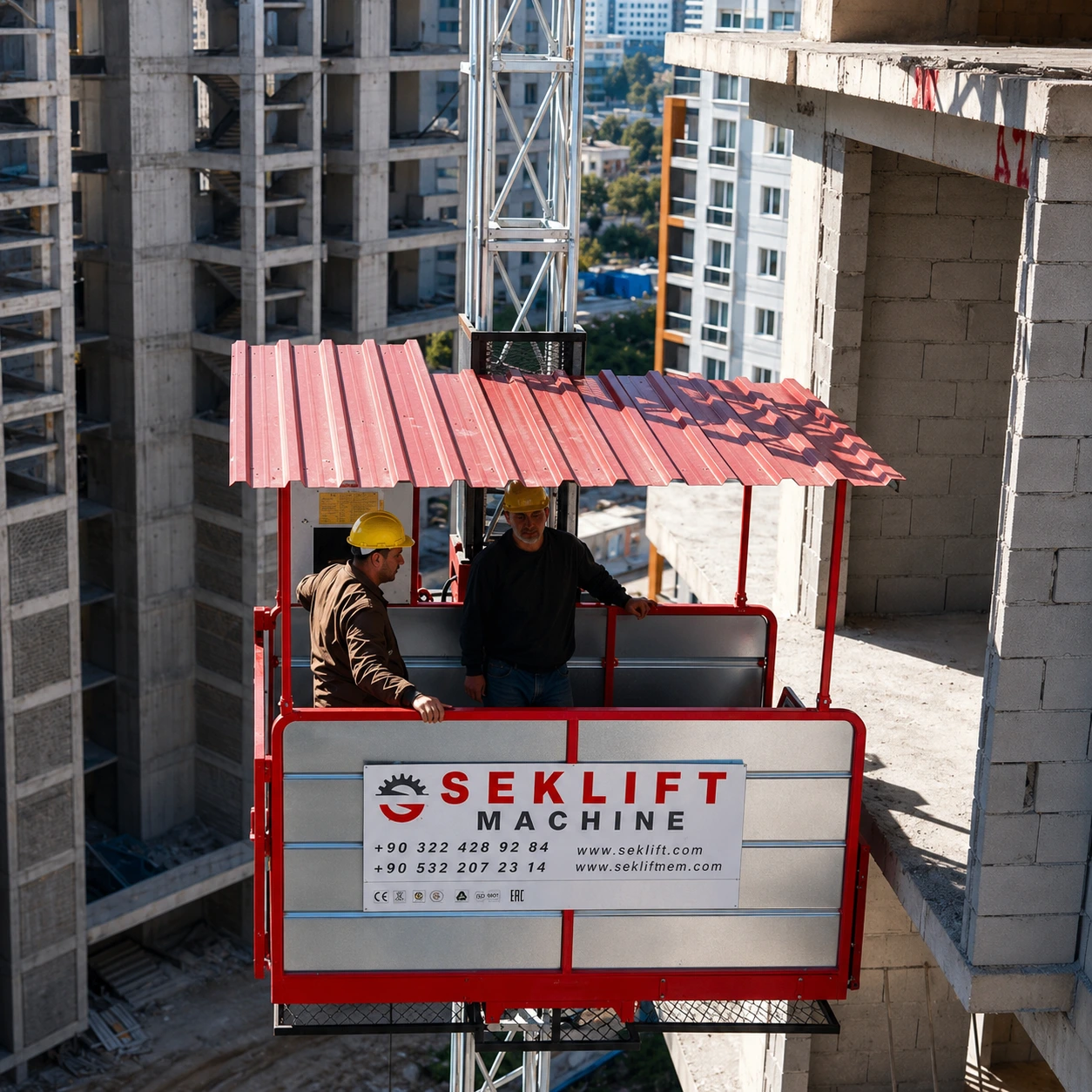

SEKLIFT SM-GTP-103 light-duty rack-and-pinion personnel and material construction hoist operating on a building
Light-duty class SM-GTP-103
Best suited to

Narrow construction zones, lighter transport duty, fast site setup, and projects where compact equipment dimensions simplify logistics.

MODEL / 02

LIGHT-DUTY RACK-AND-PINION PERSONNEL & MATERIAL HOIST

SEKLIFT SM-GTP-103

Technical classification Light-duty rack-and-pinion hoist

A compact one-ton personnel and material construction hoist engineered for safe vertical transport where installation space, handling weight, and deployment simplicity are critical.

Rated capacity 1,000 kg
Lifting speed 30 m/min
Maximum height 200 m
Certification CE certified
01 / Product strengths

Compact Rack-and-Pinion Construction Hoist Engineering Without Compromising Safety

01
Compact and lightweight structure

Designed for easier transport, efficient installation, and practical use in constrained construction areas.

02
Dual-motor parachute brake system

Sensitive to overspeed and overloading to support a high standard of operational protection.

03
Galvanized mast section

Supports durable, long-term operation under demanding construction-site exposure.

04
Safety-regulation-compliant design

Engineered in accordance with applicable construction-industry safety directives.

Safety package Overspeed and overload-sensitive protection
Material protection Galvanized mast construction
Compliance CE-certified construction hoist
Request SM-GTP-103 configuration Compare with heavy-duty model

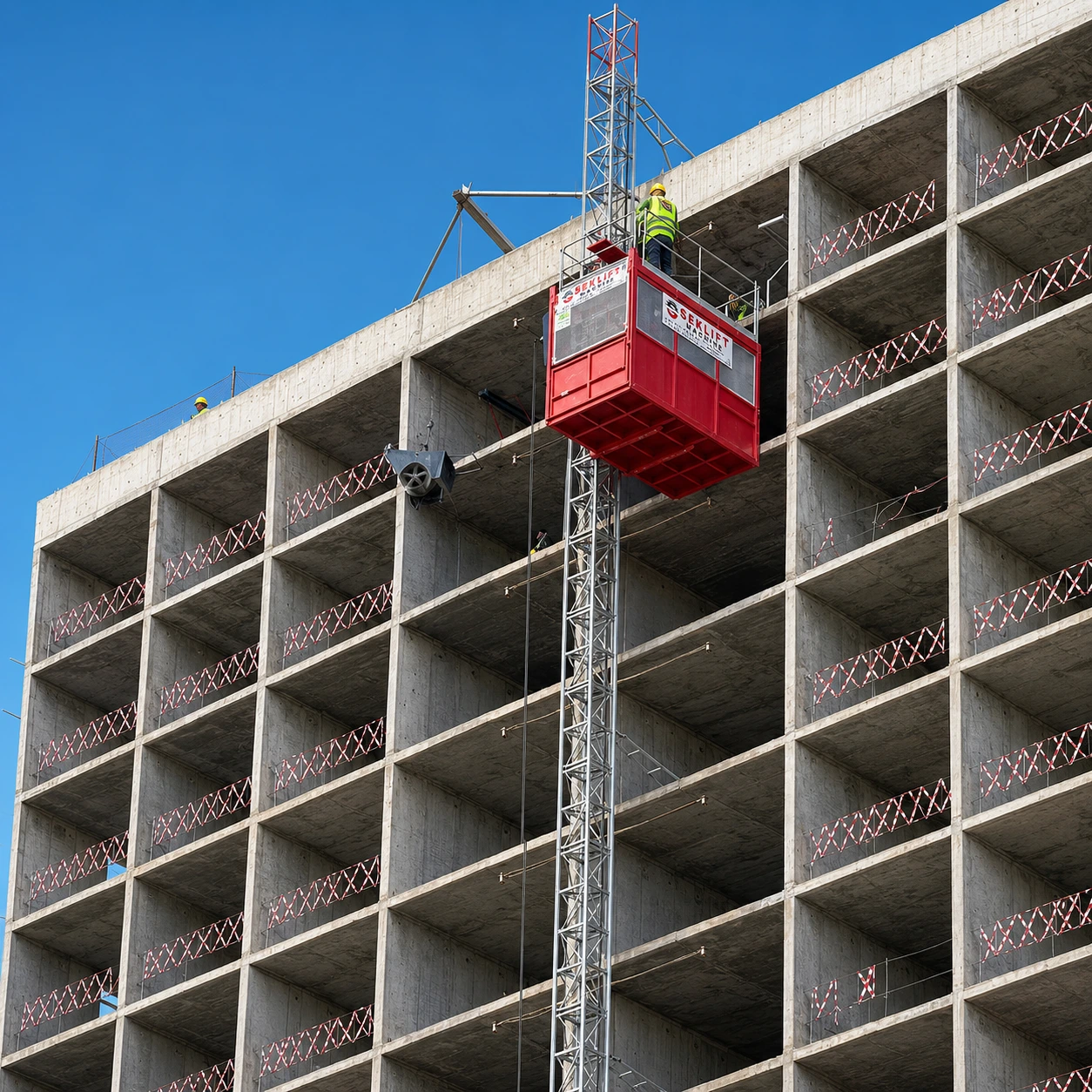

SEKLIFT SM-GTP-101 SM-GTP-101 heavy-duty personnel and material construction hoist installed on a building
High-capacity class SM-GTP-101
Best suited to

High-rise projects, large material movement, high personnel demand, broad cage access, and projects requiring selectable lifting speeds.

MODEL / 01

HIGH-CAPACITY RACK-AND-PINION PERSONNEL & MATERIAL HOIST

SEKLIFT SM-GTP-101

Technical classification High-capacity rack-and-pinion hoist

A high-capacity personnel and material construction hoist engineered for demanding site logistics, large cage access, selectable lifting speeds, and heavy-duty vertical transportation.

Rated capacity 2,500 kg
Personnel capacity 24 persons
Maximum height 200 m*
Selectable speed 36–90 m/min

* Higher mast heights can be engineered upon request.

01 / Core dimensions

Large cage geometry for personnel and construction materials

Cage dimensions 3000 × 1500 × 2000 mm
Cage weight 1635 kg — single and double versions
Front and rear doors 1500 × 2000 mm
Side door 2.6 m width for large materials
Lifting speeds 36, 54, or 90 m/min
02 / Mast system

Heavy-duty rack-and-pinion mast configuration

Square mast 550 × 550 mm
Mast-section height 1500 mm
Mounting bolts M24 × 260 / 10.9
Rack module 6 mm
Single-rack mast weight 133 kg
Double-rack mast weight 149 kg
03 / Electrical data Drive, voltage, starting current, and power
Configuration 36 m/min 54 m/min
Hoisting motors 2 × 9.2 kW 3 × 7.5 kW
Maximum starting current 120 A 150 A
Maximum power consumption 33 kW 40 kW
Supply voltage 400 V / 50 Hz Control voltage 48 V / 50 Hz / 24 DC
04 / Safety systems Integrated mechanical and electrical protection
Mechanical safety brake — UC-5.0 Emergency lowering system Upper and lower mast limit switches 1.10 m safety guardrail Overload detection device Cage-door locking device Spring-loaded disc brakes Emergency-stop safety systems
05 / Base and drive weights Ground station and top drive unit
Ground-station dimensions 3686 × 2705 × 2915 (2595) mm
Single ground-station weight 1410 kg
Double ground-station weight 1895 kg
Top drive unit 450 kg
Request SM-GTP-101 configuration Compare with compact model
SM-GTP-101 / Actual production footage

See the finished machines—not a rendering.

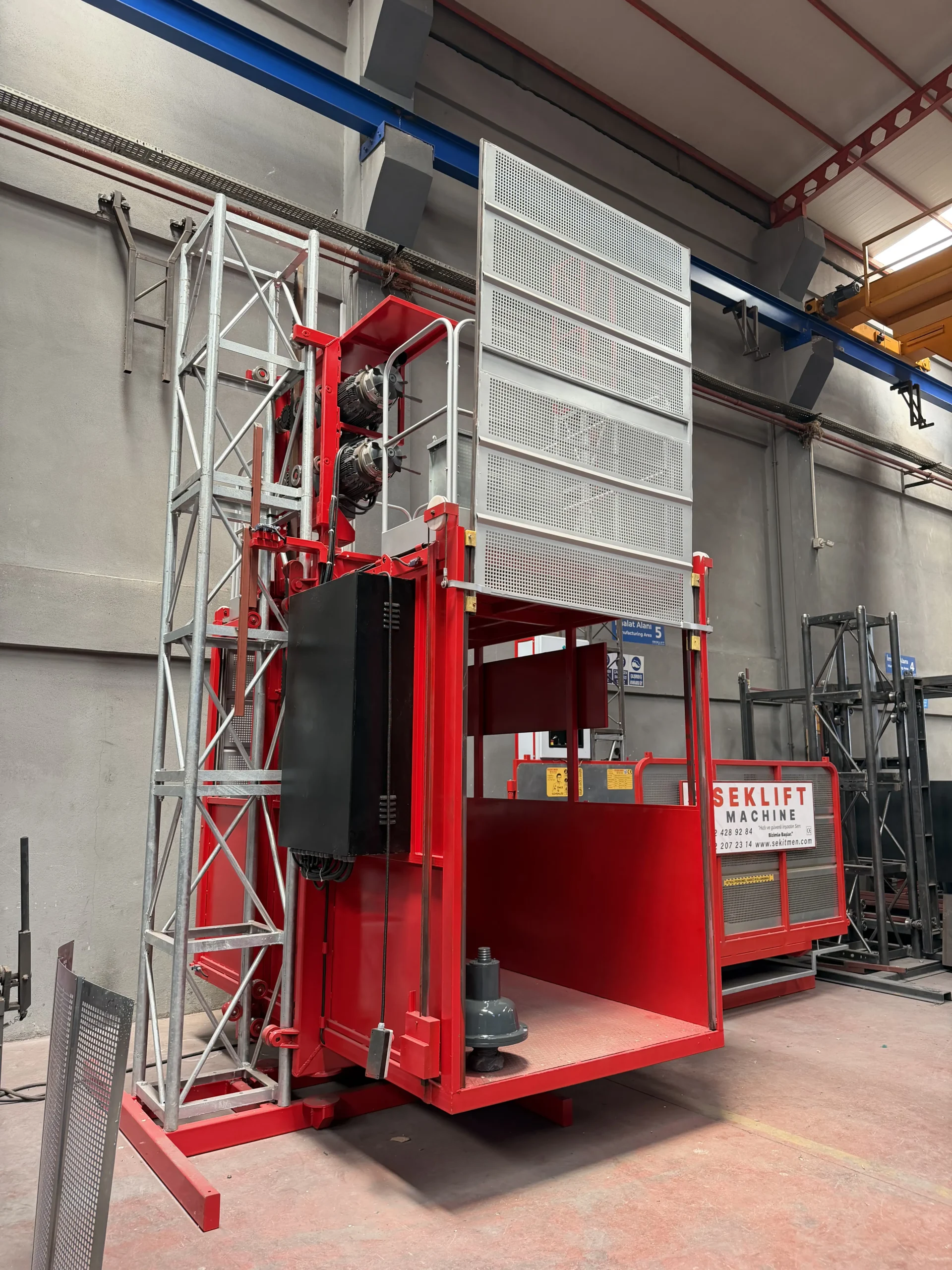

This silent footage shows completed SM-GTP-101 construction hoists in SEKLIFT storage after manufacturing and assembly.

Configure the SM-GTP-101
01 Multiple finished units Actual machines shown together in storage
02 Post-assembly condition Recorded after manufacturing and assembly
03 Direct product evidence Completed SEKLIFT equipment—not CGI
Configuration note

Final hoist configuration should be confirmed against project height, landing geometry, site power, structural anchoring, operating duty, environmental exposure, and local safety requirements.

PROJECT CONFIGURATION / SECTION 03

Configure Your Construction Hoist Around the Building

A rack-and-pinion construction hoist must work with the building and its vertical-logistics plan—not be selected from load capacity alone. The correct starting configuration depends on transport duty, total travel and landing access, required cycle performance, and the available site interface.

SEKLIFT SM-GTP-101 rack-and-pinion construction hoist installed on a high-rise building
Load & duty
Travel & landings
Cycle performance
Site interface
ACTIVE PROJECT INPUT 01

Load and transport duty

Personnel / payload / material size / trip demand

Establishes the required cage capacity and operating duty before a hoist model is selected.
Project-driven configuration Four project inputs define the correct starting arrangement.
MODEL FIT Use project duty to narrow the starting model
1,000 kg · 30 m/min · up to 200 m SM-GTP-103

For lighter personnel and material duty where compact equipment dimensions simplify site handling.

View specifications ↗
2,500 kg / 24 persons · 36–90 m/min SM-GTP-101

For high personnel demand, large materials, broad cage access, and selectable cycle performance.

View specifications ↗
PROJECT REVIEW

Define the right construction hoist for your project.

Share your lifting height, landing plan, required payload, material dimensions, and site constraints. Our team will review these inputs and recommend a suitable SEKLIFT model and configuration.
